100-63-17-02
X-Plecs®-TOP 90 AMR 1500-B L1-L2

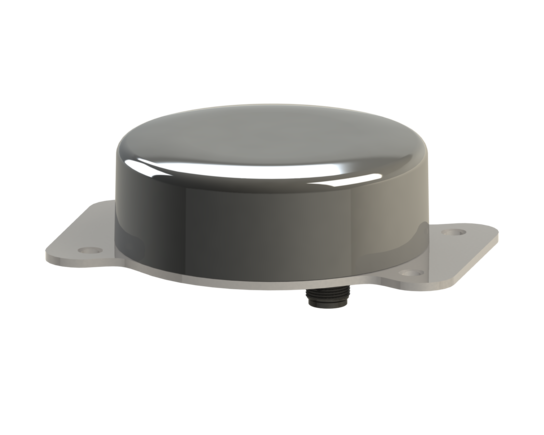

Multiband-Train Antenna with certification / approval according to train standard EN 50155 for mounting on trains and vehicles.
RF ports:
ⓐ - GNSS (L1/L2/L5)
Frequencies (MHz):
GNSS / L1 / G1 / E1 / B1 (GLONASS (G1) / 1602) , GNSS / L1 / G1 / E1 / B1 (GPS (L1) 1575,42) , GNSS / L1 / G1 / E1 / B1 (QZSS / 1575,42) , GNSS / L1 / G1 / E1 / B1 (Galileo (E1) / 1575,42) , GNSS / L1 / G1 / E1 / B1 (BeiDou (B1) / 1561,098)
GNSS-Configuration (active)
GNSS / L2 / G2 / E6 / B3 (GPS (L2) 1227,60) , GNSS / L2 / G2 / E6 / B3 (GLONASS (G2) 1246) , GNSS / L2 / G2 / E6 / B3 (Galileo (E6) 1278,75) , GNSS / L2 / G2 / E6 / B3 (BeiDou (B3) 1268,52)
GNSS / L5 / G3 / E5 / B2 (GPS (L5) 1176,45) , GNSS / L5 / G3 / E5 / B2 (GLONASS (G3) 1202,25) , GNSS / L5 / G3 / E5 / B2 (Galileo (E5) 1191,80) , GNSS / L5 / G3 / E5 / B2 (Beidou (B2) 1207,52)
SISO / MIMO (no MIMO)
Mechanics:
Type (X-Plecs TOP 90)
Height (45mm)
The X-Plecs-TOP 120 AMR train antenna series is characterized by an extremely flat and compact design with a very high decoupling. The multiband technology with selective port assignment enables the use of several frequency bands on one RF port and cost reduction through unnecessary splitters or couplers.
Product downloads:
Further technical information, assembly instructions, certificates and declarations of conformity can be found here
